BMW MSV70 MSV80 MSD80 MSD81 - 2F49 A102 Anti Tampering Protection

$625.00 CAD
  • 1 to 2 Business days turnaround time upon arrival
  • Overnight shipping both ways using our UPS shipping label

Product Information

This is a BMW Repair Service for any E-Series with N51 and N52N engines equipped with DME MSV80, MSV80.0 , MSV80.1, MSD80 and MSD81 that have the following BMW Fault codes (See Popular Fault Codes):

Popular Fault Codes

  • 2F49 -- Anti tampering protection
  • 2F4C -- EWS DME message incorrect
  • A102 -- Immobilizer anti tampering protection

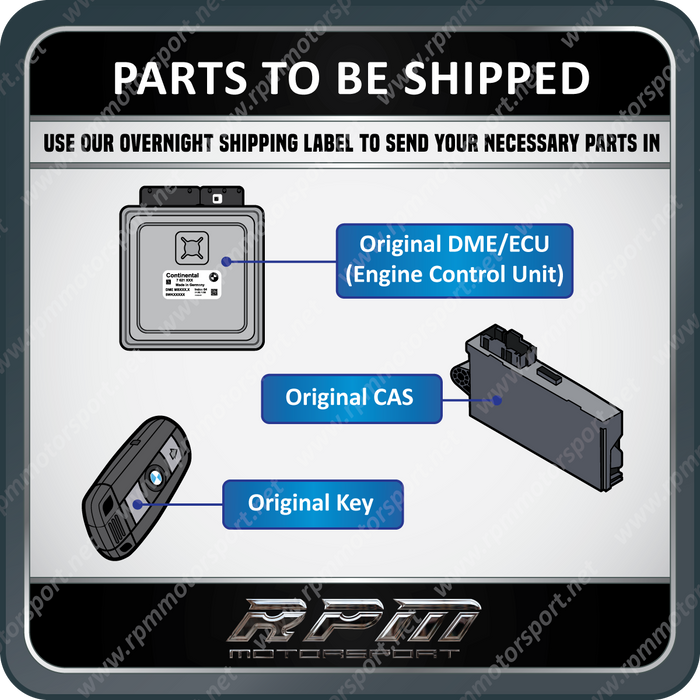

The reason this happens is because the CAS Module and DME (Engine control unit) loses its Sync Code between them. Even with an Autologic or ISTA-P you will NOT be able to make a CAS-DME Alignment. The Only way this will work is that you send us your DME, CAS and Key.

 Models Supported

  • BMW 3 Series E90 325i 01/2005 to 08/2006
  • BMW 3 Series E90 323i 03/2005 to 08/2006
  • BMW 3 Series E90 325xi 09/2004 to 08/2006
  • BMW 3 Series E90 330i 02/2004 to 08/2006
  • BMW 3 Series E90 330xi 03/2005 to 08/2006
  • BMW 5 Series E60 525i 07/2004 to 02/2007
  • BMW 1 Series E82 128i From 12/2006 To 10/2013
  • BMW 3 Series E90 323i From 01/2007 To 12/2011
  • BMW 3 Series E90 - E92 328i From 01/2007 to 06/2013
  • BMW 3 Series E90 - E92 328xi From 01/2007 To 06/2013
  • BMW 5 Series E60 LCI 528i Years 05/2006 To 12/2009
  • BMW 5 Series E60 LCI 528xi Years 05/2006 To 12/2009
  • BMW X5 Series E70 3.0si / 3.0L From 08/2006 To 03/2010
  • BMW Z4 Series E89 23i / 28i / 30i From 07/2008 To 08/2011
  • BMW 1 Series E82 135i From 12/2006 To 10/2013
  • BMW 1 Series E88 135i From 12/2006 To 10/2013
  • BMW 3 Series E90 335i From 08/2006 To 12/2009
  • BMW 3 Series E91 335xi From 08/2006 To 12/2009
  • BMW 3 Series E92 335i From 08/2006 To 12/2009
  • BMW 3 Series E93 335i From 08/2006 To 12/2009
  • BMW 5 Series E60 535i / 535xi From 04/2008 To 12/2009
  • BMW Z4 Series E89 35i From 07/2008 To 08/2016
  • BMW Z4 Series E89 35is From 07/2008 To 08/2016
  • BMW X6 Series E71 X6 35iX SAC From 01/2007 To 12/2009

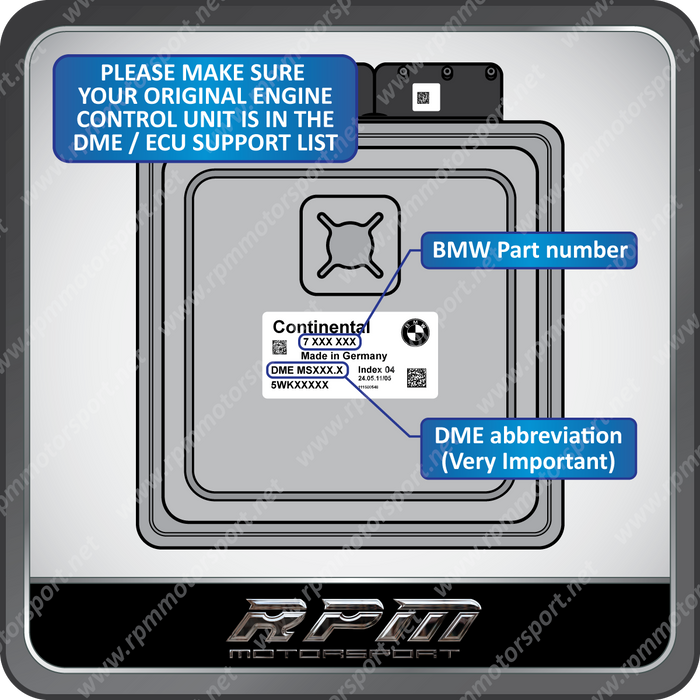

DME / ECU SUPPORT LIST


MSV70 DME'S (ECU) AKA N52 Engines.

DME Supported Part Number (Siemens MSV70)

  • 7552398 - 7552399 - 7553166 - 7553167
  • 7555361 - 7555362 - 7559178 - 7559179
  • 7561817 - 7561818 - 7561684 - 7561685
  • 7567179 - 7567180 - 7577969 - 7577970

 MSV80 / MSV80.0 /  MSV80.1 DME'S (ECU) AKA N51 and N52N Engines.

DME Supported Part Number (Siemens MSV80)

  • 7546143  -  7557135  -  7565861  -  7565862
  • 7567227  -  7567230  -  7567362  -  7567367
  • 7569988  -  7570376  -  7570398  -  7573322
  • 7573323  -  7574540  -  7574541  -  7574544
  • 7574545  -  7575057  -  7575058  -  7575498
  • 7575499  -  7576297  -  7576300  -  7577068
  • 7577069  -  7577996  -  7577997  -  7581123
  • 7581124  -  7583468  -  7583470  -  7587164
  • 7587165  -  7591709  -  7591710  -  7594483
  • 7594484  -  7594941  -  7594942  -  7597091
  • 7597093
DME Supported Part Number (Siemens MSV80.0)
  • 7602220  -  7602221  -  7605429  -  7605430
  • 7609656  -  7609657  -  7611280  -  7611281
  • 7614359  -  7614361  -  7624048  -  7624049
DME Supported Part Number (Siemens MSV80.1)
  • 7567609  -  7567610  -  7569989  -  7573332
  • 7574542  -  7574543  -  7574546  -  7574547
  • 7575500  -  7575501  -  7576670  -  7576671
  • 7581126  -  7581127  -  7581547  -  7581548
  • 7583526  -  7583527  -  7584309  -  7584310
  • 7587166  -  7587167  -  7591843  -  7591844
  • 7594485  -  7594486  -  7597425  -  7597426
  • 7602216  -  7602217  -  7605423  -  7605424
  • 7609658  -  7609659  -  7611282  -  7611283
  • 7614362  -  7614363  -  7624052  -  7624053
  • 7629046  -  7639647  -  8613002

MSD80  / MSD81 / DME (ECU) with N54 / N54T Engines.

DME Supported Part Number (Siemens MSD80)

  • 7546141  -  7550014  -  7565859  -  7565860
  • 7567229  -  7567232  -  7567491  -  7567492
  • 7567542  -  7567543  -  7568370  -  7568371
  • 7568842  -  7568843  -  7569978  -  7569979
  • 7571468  -  7571469  -  7572063  -  7572064
  • 7572067  -  7572068  -  7573796  -  7573797
  • 7573863  -  7573864   -  7574534  -  7574535
  • 7575875  -  7575876  -  7576719  -  7576720
  • 7576721  -  7576722  -  7578020  -  7578021
  • 7578441  -  7578442  -  7583332  -  7583333
  • 7586938  -  7586939  -  7586940  -  7586954
  • 7588620  -  7588621  -  7594305  -  7594306
  • 7595235  -  7595236  -  7596017  -  7596018
  • 7611396  -  7611397

DME Supported Part Number (Siemens MSD81)

  • 7578033  -  7578034  -  7579011  -  7579012
  • 7583324  -  7583325  -  7585540  -  7585541
  • 7585711  -  7585712  -  7585889  -  7585890
  • 7586933  -  7586934  -  7590871  -  7590872
  • 7592080  -  7592081  -  7593493  -  7593494
  • 7596019  -  7596020  -  7596022  -  7596021
  • 7600427  -  7600428  -  7601865  -  7601866
  • 7602118  -  7602119  -  7604567  -  7604568
  • 7604593  -  7604594  -  7605662  -  7605663
  • 7608621  -  7608622  -  7611358  -  7611359
  • 7612455  -  7612456  -  7614620  -  7614620
  • 7616431  -  7616432  -  7618935  -  7618936
  • 7622911  -  7622912

    DME & CAS Removal
