Product Information

Note: Please check the production date of your vehicle to make sure this is the correct product for your model. Different tuning devices are sent for different model years.

This is a SCR (Adblue) , DPF (Diesel particulate filter) and EGR (Exhaust gas recirculation) removal Programming Service for BMW F30 328d or 328dx models Years 2013 to 06/2015 with N47N engines equipped with DDE701 (EDC17C50).

SCR / DEF / Adblue Delete:

• This Service is useful when your engine gives you a warning that it will stop running in 200 miles, and when you reach warning level 3, no engine start is possible unless you go to the dealer and spend over $8500 for a complete SCR system.

DPF (Diesel particulate filter) Delete:

• This service is useful when your DPF gets clogged up and starts causing a loss in power or stops regenerating properly. It costs around $3400 to replace, but with our service you can remove it from the exhaust and install a straight pipe in its place or hollow it out.
• Note: If the DPF is deleted the EGR also need to be deleted.

EGR (Exhaust Gas Recirculation) Delete:

• This service is useful if you have EGR related fault codes or if your EGR valve is clogged up and not opening or closing properly. You will need to unplug the electrical connector of the EGR valve, making sure the valve is in the closed position.
• Note: If the EGR is deleted the DPF also need to be deleted.

Disclaimer: Within the USA & Canada, this product is legal only for racing vehicles which may never be used on a public highway.

Popular Fault Codes

SCR / DEF / Adblue

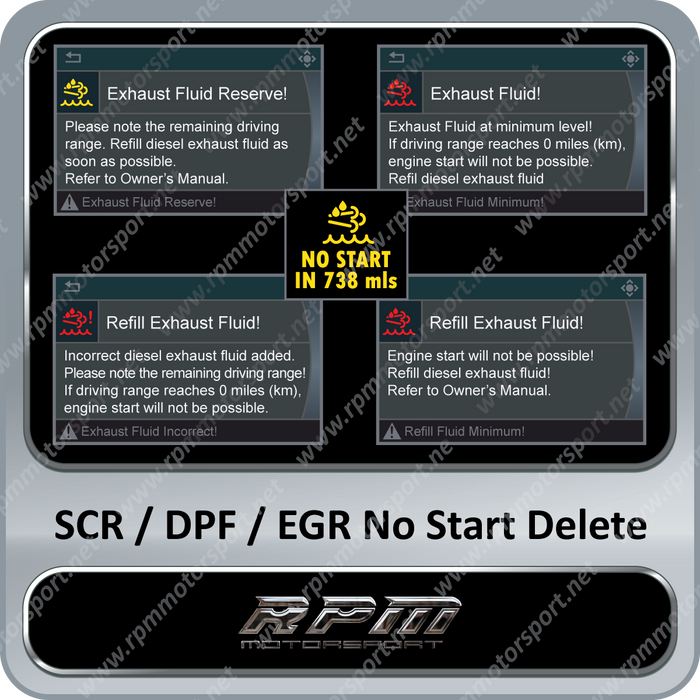

Popular Dash Warnings:

• No Start in XXX miles.
• No Start in --- miles.
• Exhaust Fluid Reserve!
• Exhaust Fluid!
• Exhaust Fluid Incorrect!
• Refill Exhaust Fluid!

Popular Fault Codes:

• 41F9 SCR System: System error and poor urea/water mixture quality detected.
• 474C SCR System, warning and deactivation scenario: Warning Level 1.
• 4748 SCR System, warning and deactivation scenario: Warning Stage 2.
• 4746 SCR System, warning and deactivation scenario: Warning Stage 3 (Maximum range reached).
• 4D08 SCR System, warning and deactivation scenario: Maximum range reached (No engine start possible).
• 2C4E00 SCR System: Poor AdBlue quality detected or system fault.
• 26FD00 SCR System metering adaptation: Too high.
• 29FB00 SCR System, warning and shutdown scenario: Warning Level 1.
• 29FC00 SCR System, warning and shutdown scenario: Warning Level stage 2.
• 29FD00 SCR System, warning and shutdown scenario: Warning Level stage 3, maximum range reached, engine start hindrance.
• 272000 SCR System, warning and deactivation scenario: Maximum range reached (No engine start possible).

DPF (Diesel particulate filter)

Popular Fault Codes:

• 452A appears when the particulate filter has exceeded most of the maximum running distance and serves as information / request for competent filter replacement in the BMW workshop.
• 4D4A appears if no measures are taken despite the request for filter replacement being issued and the total running distance of the particulate filter has been exceeded.

Tuning Specs

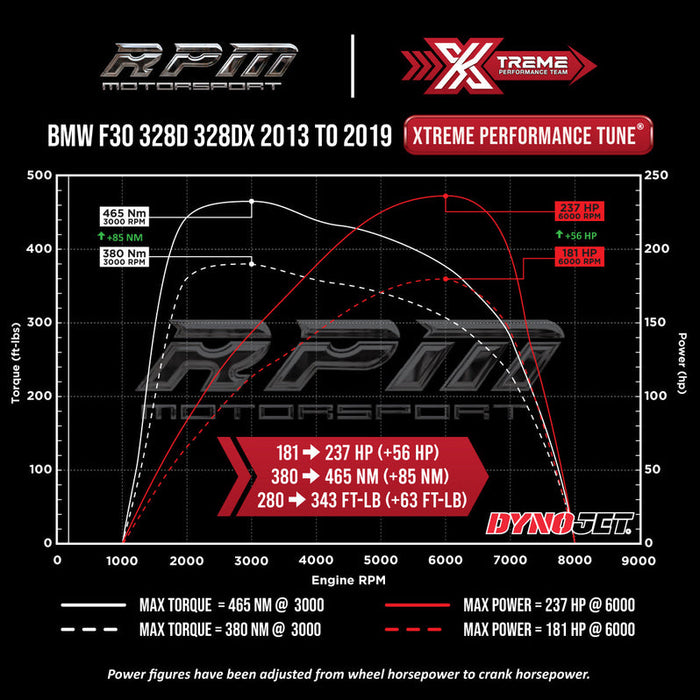

• Daily Driver Tune Plus power increase of +31HP & Torque increase of +55NM (41ft-lbs).


Models Supported

• 3' F30, 328d, Sedan, N47N Engine Years (2013 — 06/2015)

• 3' F30, 328dX, Sedan N47N Engine Years (2013 — 06/2015)
• BMW 3 Series F31, 328dX, Sports Wagon, N47N Engine, Years 2013 to 06/2015

DDE / ECU Supported

DDE701 (ECU's) with N47N Engines

EDC17C50

• 8586534 - 8574380 - 8574234
• 8572546

SCR / DEF ECU REMOVAL
